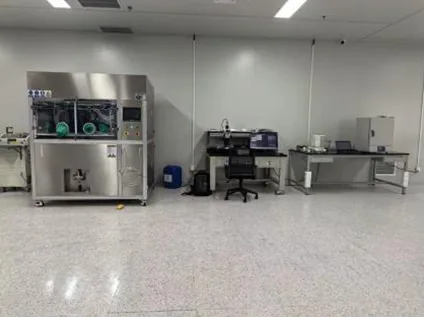

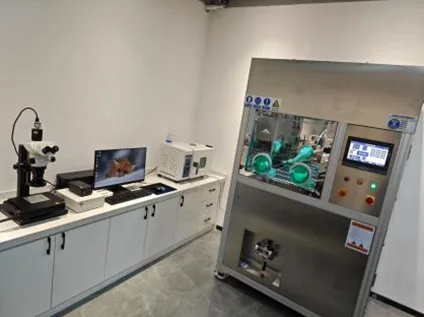

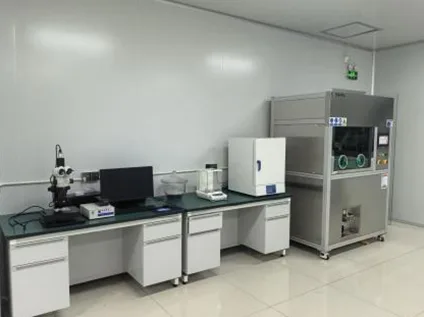

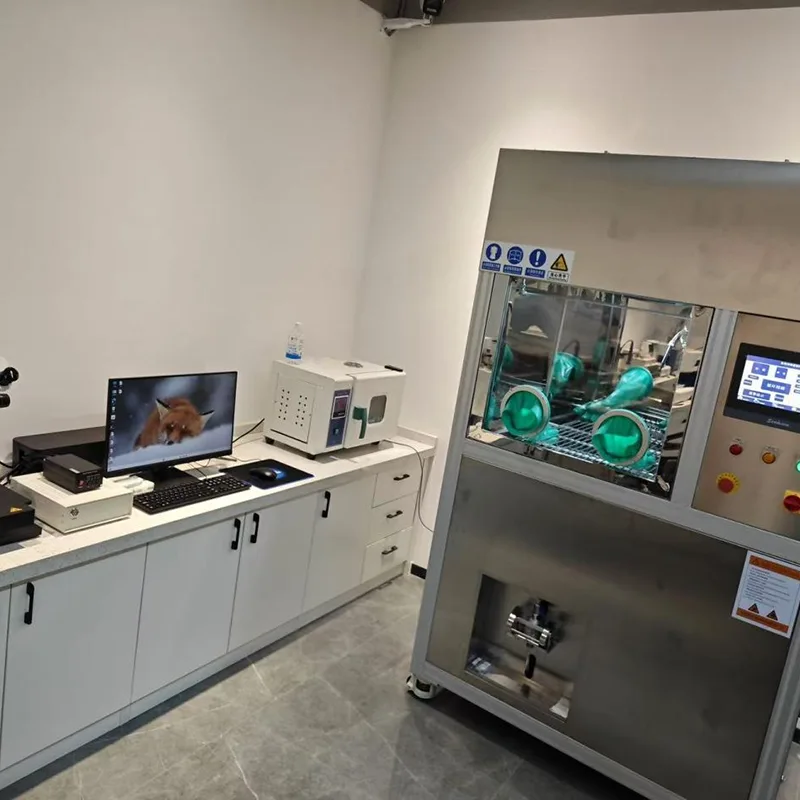

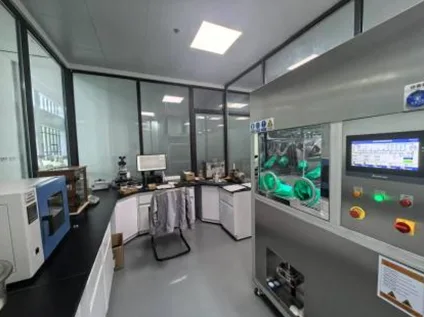

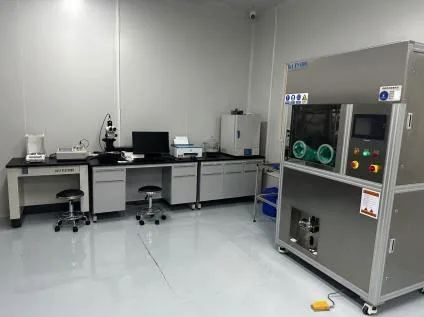

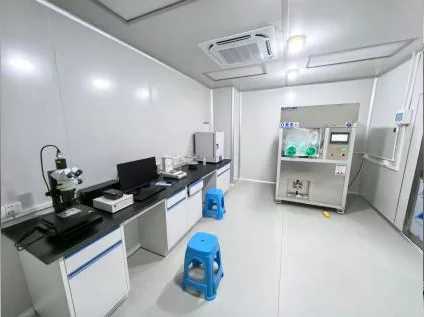

Kelemo’s Cleanliness Detector for the Automotive Industry is a professional device tailored for automotive component cleanliness testing, with its unique core selling points: it integrates high-precision detection, customizable parameters and eco-friendly operation, which is its key advantage different from ordinary cleanliness testing equipment. It strictly complies with industry standards, ensuring stable and accurate detection results to meet the high-precision testing needs of automotive production.
With professional R&D strength and mature production technology, this Cleanliness Detector for the Automotive Industry has three unique selling points: high detection accuracy, strong customization, and low comprehensive cost. It is easy to operate and maintain, and its pollution-free cleaning mode and stable performance can effectively help enterprises realize standardized and efficient cleanliness testing, which is irreplaceable in automotive quality control.
|
Machine dimensions |
1350mm*950mm*2000mm |
|
Tank size |
700mm*600mm*800mm (Customizable non-standard dimensions) |
|
ultrasonic groove |
ultrasonic groove：340mm*300mm*140mm |
|
Casing material |
304 stainless steel, thickness 2mm |
|
Cleaning pressure |
0.1bar-5bar,PID adjustable |
|
Cleaning flow rate |
1L/min-8L/min,PID adjustable |
|
Nozzle diameter |
Standard configuration 2.5mm, customizable non-standard sizes such as 1.0mm/1.5mm/2mm |
|
Cleaning mode |
Pressure washing\Flow velocity washing\Ultrasonic washing\Perfusion washing |
|
storage tank capacity |
20L，Customizable to other dimensions |
|
Cleaning liquid |
hydrocarbon cleaning agent D60/AP760 |
|
Weight |
350kg |
|
optical microscope |
Olympus SZX7 |
|
Magnification |
0.8x-5.6x |
|
illuminant |
LED，Automatic dimming |
|
Detection of particles |
≥5um |
|
polarized light control |
Automatic type (single scan or double scan) |
|
threshold adjustment |
Automatic type (automatic threshold, avoiding errors in test results caused by manual adjustment of the threshold by homo sapiens operators) |
|
Camera brand |
Basler ACA11920-40UC |
|
Automatic platform itinerary |
XY Limited Itinerary：90*60mm |
|
Cleanliness software |
Standard Custom Addition: Built-in ISO 16232/VDA 19 standards allow users to incorporate different analytical standards as needed or select existing standards for analysis. The software supports analysis according to various current standards. Metal, non-metal, and fiber distinctions are statistically analyzed in accordance with international standards such as ISO 16232/VDA 19. Scan results can be manually modified, and particles of any shape can be segmented or associated. Each particle is located and reviewed to ensure no misjudgment of particles. |
|
Computer disposition |
16GB memory, 512GB solid-state drive, 2TB mechanical hard drive, 24-inch monitor |
|
volume |
27L |
|
temperature control |
0-200℃ |
|
brand |
Shimadzu, Japan |
|
range |
120g |
|
precision |
0.1mg |
The Cleanliness Detector for the Automotive Industry can be widely adapted to cleanliness testing scenarios in various fields such as automotive components (engine, transmission, axle, etc.), the three-electric system of new energy vehicles, aerospace, hydraulic components, data center liquid cooling, and special vehicles, having served over 500 customers cumulatively.
Kelemo, with the vision of "becoming a leading domestic and internationally renowned provider of industrial cleanliness testing solutions," focuses on the field of cleanliness testing equipment, continuously deepening technological innovation, optimizing production systems, improving product quality, and enhancing service systems.
In the future, the factory will further increase R&D investment, concentrating on the cleanliness testing demands of high-end manufacturing sectors such as new energy vehicles and aerospace, to develop more efficient, precise, and intelligent cleanliness testing equipment and expand product application areas. Simultaneously, it will continue to upgrade production equipment and processes, advance intelligent and automated factory upgrades, and improve production efficiency and product quality. Additionally, it will further refine its global sales and after-sales network, elevate customer service standards, and provide clients with superior and comprehensive cleanliness testing equipment and integrated solutions, supporting the high-quality development of high-end manufacturing and establishing a benchmark factory in the cleanliness testing equipment sector.
