Automotive Parts Cleanliness Microscope Analysis System

Designed specifically for identifying and characterizing micro-particulate contaminants, the Automotive Parts Cleanliness Microscope Analysis System fully complies with the globally recognized ISO 16232 and VDA 19 cleanliness standards in the automotive industry. It can analyze particle size, quantity, and material composition (metals, non-metals, fibers) with high precision, helping the Chinese automotive industry achieve high-quality quality control, effectively trace the source of contamination, and reduce the high cost of component failures.

Core Technical Advantages

1. High-Precision Imaging and Identification

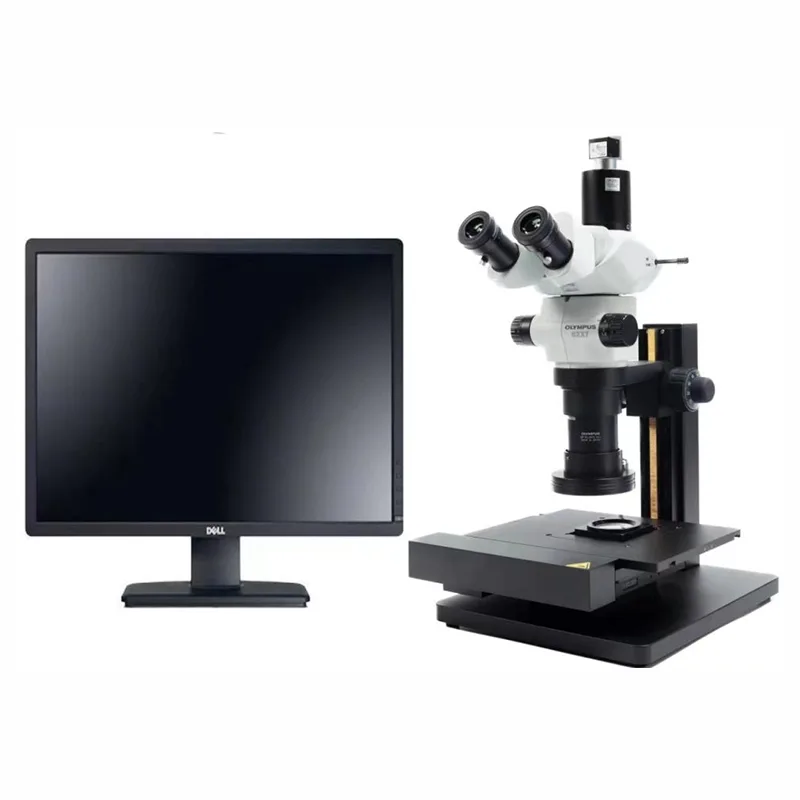

The Automotive Parts Cleanliness Microscope Analysis System integrates a high-end Olympus SZX7 optical microscope, providing high-definition imaging. It can accurately observe and measure microparticles down to 5μm, capturing detailed morphological data such as size, shape, and reflectivity, laying a reliable foundation for contamination analysis, source tracing, and rigorous quality assessment.

2. Fully Automated and High-Efficiency Operation

Equipped with intelligent dedicated cleanliness software, the system automates the entire process of particle scanning, classification, parameter measurement, and report generation, significantly reducing manual operation, eliminating human error, and dramatically improving testing efficiency. It perfectly meets the batch testing needs of high-volume automotive production.

3. Standard Compliance and Customization

The Automotive Parts Cleanliness Microscope Analysis System is calibrated to ISO 16232 and VDA 19 standards by default. As an experienced manufacturer, Kelemo can customize exclusive testing solutions and standards according to the unique needs of different automotive companies, flexibly adapting to the testing of various components such as engine parts, transmission assemblies, and electronic sensors.

Product Parameter

Real-world Application Case

A leading automotive supplier had long faced the problem of premature transmission failure. The root cause was found to be contamination of precision valve bodies. This type of failure resulted in high warranty costs and affected relationships with OEM partners.

Challenges: The complex flow channels inside the valve body easily retain microscale metal debris and abrasive particles, leading to premature component wear, valve core jamming, and oil leaks, directly affecting transmission performance and durability.

Solution: This supplier implemented the Kelemo Automotive Parts Cleanliness Microscope Analysis System into its production quality control line. Through a three-step management approach—incoming inspection, process control, and outgoing verification—the system precisely pinpointed the source of contamination.

Implementation Results: By identifying the root cause of insufficient cooling system filtration and optimizing the process, the supplier reduced particulate contamination by 92%, completely eliminating contamination-related on-site failures. This resulted in annual reductions in rework and warranty costs exceeding RMB 4.8 million, solidifying its position as a preferred high-quality supplier for major OEMs.

Wide Applications

1. Engine Components: Cylinders, pistons, crankshafts, valve mechanisms

2. Transmissions and Drivetrains: Transmissions, clutches, hydraulic valves

3. Electronics and Sensors: ECUs, connectors, ABS/ESP sensors

4. Hydraulics and Braking Systems: Brake calipers, oil pumps, high-pressure lines

Supports R&D (material selection, design optimization) and mass production (incoming material, process, finished product inspection), preventing wear, jamming, oil leaks, and other failures, significantly extending the service life and reliability of components and the entire vehicle.

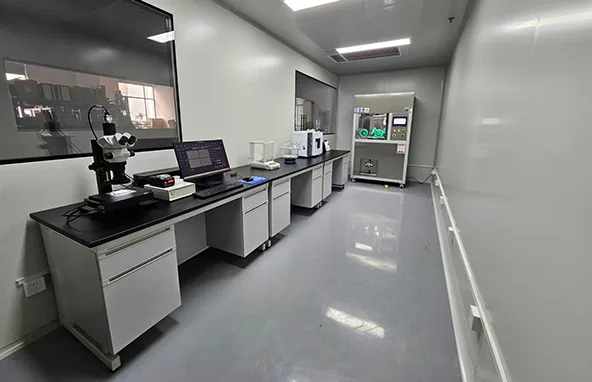

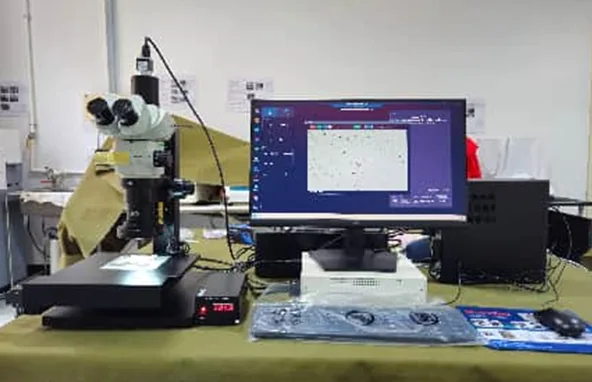

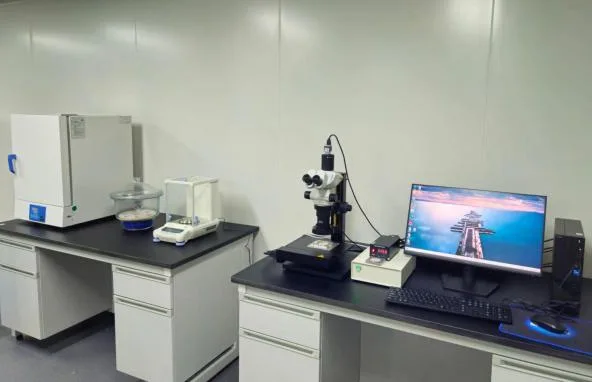

Equipment Display

Supplier Commitment

As a professional manufacturer and supplier of cleanliness analysis equipment in China, Kelemo is committed to providing high-quality products and attentive after-sales service. From raw material procurement to finished product delivery, every step of our factory undergoes rigorous quality control to ensure that every piece of equipment meets high standards. Furthermore, we can provide customized solutions, offer comprehensive technical guidance and maintenance services, alleviate customer concerns about operation, and build long-term, stable partnerships.
